Select GPS tracker model

CalAmp ATU-620 is a compact and low-maintenance vehicle tracking device perfect for long-term deployments.

Location and tracking

• GPS
• Continous tracking mode
• LBS

Mobile networks

• GSM 850/900/1800/1900
• HSPA/UMTS 800/850/900/1700/1900/2100
• 2G

Power supply

• Replaceable 1.5 AA Alkaline cells

Other features

• IP-66 protection
• Operating temperature -30° to +75° C

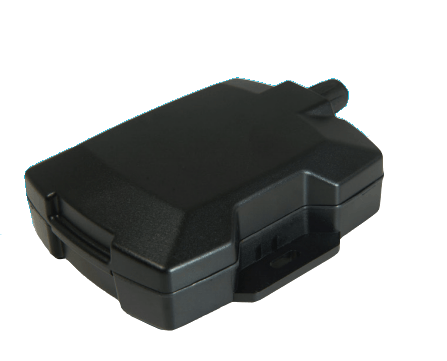

The LMU-1100 is an economical, fully-sealed vehicle tracking product designed for easy and reliable installation in recreational vehicles and assets with outdoor exposure. The LMU-1100 is an ideal solution for asset monitoring and theft recovery for motorcycles, snowmobiles and other outdoor recreational vehicles.

Location and tracking

• GPS Support
• Continuous tracking mode
• LBS Support

Mobile networks

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Power supply

• Build-in battery (700 mAh)
• External power supply (9-30 VDC)

Inputs and outputs

• 1 Discrete input

Other features

• 1-Wire
• Remote management
• LED indication
• Accessories

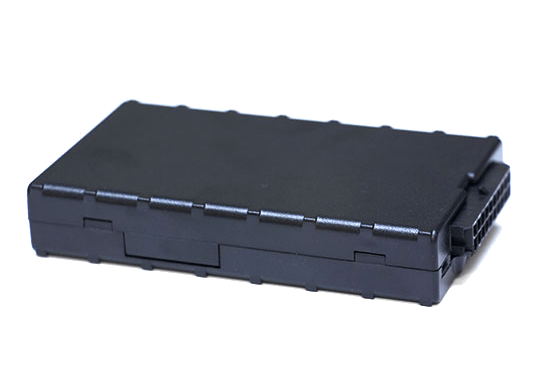

The LMU-1200 is a full-featured vehicle tracking product designed for easy and reliable installation in automobiles. The LMU-1200 is an ideal solution for basic fleet, automotive insurance, stolen vehicle, vehicle finance, auto rental and other vehicle track and trace applications where an internal back-up battery is required.icles.

Location and tracking

• GPS, GLONASS Support
• Continuous tracking mode
• LBS Support

Mobile networks

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Power supply

• Build-in battery (200/1000 mAh)
• External power supply (9-32 VDC)

Inputs and outputs

• 4 Discrete input
• 1 Analog input
• 4 Digital outputs

Other features

• Remote management
• LED indication
• Accessories

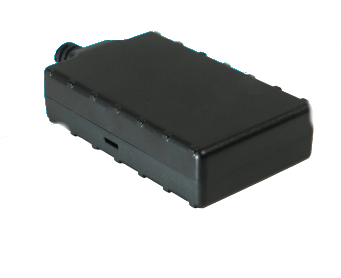

The LMU-200 is an economical, full-featured vehicle tracking product designed for covert and reliable installation in automobiles. The LMU-200 is an ideal solution for stolen vehicle, vehicle finance, auto rental and other automotive track and trace applications.

Location and tracking

• GPS Support
• Continuous tracking mode
• LBS Support

Mobile networks

• 850/1900MHz
• 2G Network

Power supply

• Build-in battery (200/1000 Li-Ion)
• External power supply (9-32 V)

Inputs and outputs

• 3 Discrete inputs
• 4 Digital outputs

Other features

• Optional 1-Wire interface
• Remote management
• AGPS

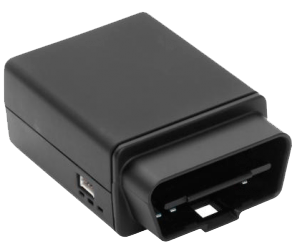

The LMU-2030 series provides a range of easy-to-install cost optimized vehicle tracking devices designed to meet the needs of the growing connected car market. The LMU-2030 series is optimized for a diverse range of automotive applications in passenger or light-duty vehicles.

Location and tracking

• Continuous tracking mode
• LBS Support

Mobile networks

• 850/900/1800/1900 MHz
• 2G/3G/4G Support

Power supply

• External power supply (9-16 V)

Other features

• Remote management
• OBD connector
• Sleep mode

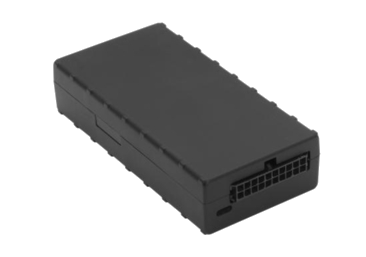

CalAmp LMU-2600 fleet tracking unit offers leading edge fleet management features including a triple-axis accelerometer for measuring driver behavior and vehicle impacts while offering the high reliability fleet customers demand.

• GPS Support
• Continuous tracking mode
• LBS Support

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Operating Voltage:

• 9-30 VDC (Start-up, Operating)
• 7-32 VDC (Momentary)

Power Consumption:

• 7 mA @ 12V <500 uA (deep sleep)
• 20 mA @ 12V (idle on network)
• 150 mA @ 12V (active tracking with VBUS active)

• 5 Discrete input
• 2 Analog input
• 3 Digital outputs
• 1-Wire Interface
• 2 power TTL ports

• Remote management
• LED indication
• Accessories

CalAmp LMU-2630 is a fleet tracking unit offers leading edge fleet management features including a triple-axis accelerometer for measuring driver behavior and vehicle impacts while offering the high reliability fleet customers demand.

• GPS Support
• Continuous tracking mode
• LBS Support

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Operating Voltage:

• 9-30 VDC (Start-up, Operating)
• 7-32 VDC (Momentary)

Power Consumption:

• 7 mA @ 12V <500 uA (deep sleep)
• 20 mA @ 12V (idle on network)
• 150 mA @ 12V (active tracking with VBUS active)

• 5 Discrete input
• 4 Analog input
• 3 Digital outputs
• 1-Wire Interface
• 2 power TTL ports

• Remote management
• LED indication
• Accessories

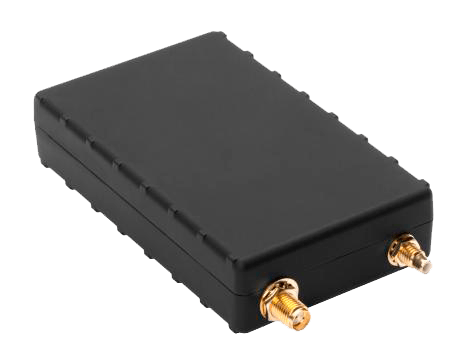

The LMU-2700 is a robust fleet device you can count on for AVL applications. The LMU-2700 incorporates GSM/GPRS, CDMA 1xRTT or HSPA wireless communication along with extra sensitive GPS technology in an affordable package. High sensitivity GPS and either internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations. An integrated 1,000mAh back-up battery allows for short-term or last-gasp tracking when disconnected from main power.Location and tracking

The device support GPS, GLONASS, QZSS and is AGPS capable.

Mobile networks

Standard quad-band GSM/GPRS, and also supports CDMA, HSPA.

Power supply

Optional 200 mAh or 1000 mAh back-up battery

Key features

- Packet data (GPRS, CDMA 1xRTT or HSPA and SMS based messaging
- Internal or external GPS and cellular antennas
- High sensitivity GPS (-162dBm)
- Low power sleep modes
- Internal 1000mAh back-up battery
- 3-axis accelerometer for motion, hard braking and impact detection
- 20,000 buffered messages for data logging during coverage loss
- 32 built-in geo-fences
- Dual serial ports
- PEG™ exception-based rules
- Automatic over-the-air unit configuration and firmware download (PULS™)
- Web based device management (PULS™)

The LMU-300 is an economical, full-featured vehicle tracking product designed for covert and reliable installation in automobiles. The LMU-300 is an ideal solution for stolen vehicle, vehicle finance, auto rental and other automotive track and trace applications

Location and tracking

• GPS Support
• Continuous tracking mode
• LBS Support

Mobile networks

• 850/900/1800/1900 MHz
• 2G/3G Network

Power supply

• Build-in battery (200/1000 Li-Ion)
• External power supply (9-32 V)

Inputs and outputs

• 2 Discrete inputs
• 1 Digital outputs

Other features

• Remote management
• AGPS

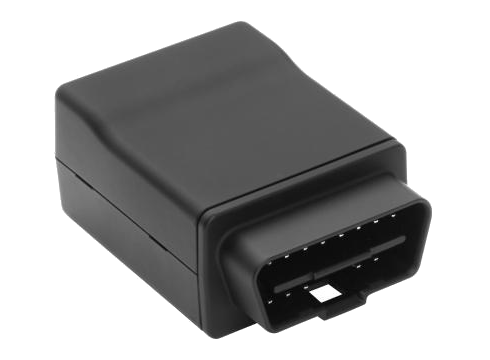

CalAmp LMU-3030 series provides a range of easy-to-install cost optimized vehicle tracking devices designed to meet the needs of the growing connected car market. The LMU-3030 series delivers access to the vehicle diagnostics interface ideal for insurance applications, driver behavior management, auto rental and automotive applications in passenger or light-duty vehicles.

• GPS Support
• Continuous tracking mode
• LBS Support

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Operating Voltage

• 9-16 VDC Vehicle Systems

Sleep Mode

• 4.9mA @ 13V (deep sleep )
• 83mA @ 13V (normal operation)
• 66mA @ 13V (SMS+UDP connection, GPS off)
• 114mA @ 13V (continuous transmit)

• Remote management
• Built-in OBD-II/EOBD-II interface via J1962 compliant connector

CalAmp LMU-3640 is a next generation telematics gateway that includes a range of wireless and peripheral connectivity options and is equipped with CalAmp’s purpose built vehicle interface technologies for both light and heavy duty vehicles.

• GPS/GLONASS Support
• Continuous tracking mode
• LBS Support

• 700/850/1700/1900 MHz
• 3G / 4G Network

Operating Voltage:

• 9-30 VDC (Start-up, Operating)
• 7-32 VDC (Momentary)

Power Consumption:

• 7 mA @ 12V <500 uA (deep sleep)
• 20 mA @ 12V (idle on network)
• 150 mA @ 12V (active tracking with VBUS active)

• 5 Discrete input
• 2 Analog input
• 4 Digital outputs
• 1-Wire Interface

• Remote management
• LED indication
• Accessories

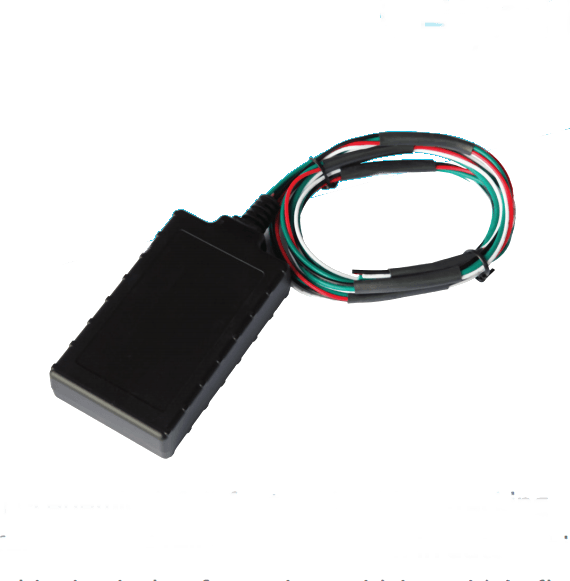

The LMU-400 is an economical, full-featured vehicle tracking product designed for easy and reliable installation in automobiles. The LMU-400 is an ideal solution for stolen vehicle, vehicle finance, auto rental and other automotive track and trace applications when internal back-up battery is required.

Location and tracking

• GPS Support
• Continuous tracking mode
• LBS Support

Mobile networks

• 800/850/900/1700/1900/2100 MHz
• 2G/3G Network

Power supply

• Build-in battery (200 Li-Ion)
• External power supply (9-30 V)

Inputs and outputs

• 1 Discrete inputs
• 3 Digital outputs

Other features

• Remote management
• AGPS
• Internal buzzer
• 10 built-in geo-fences

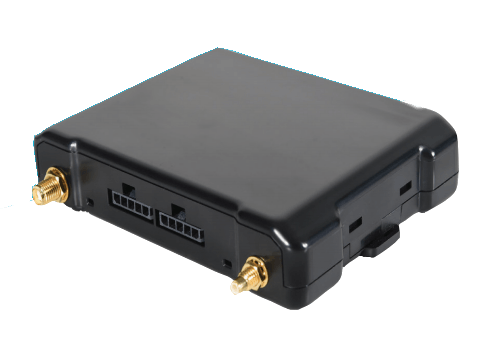

CalAmp’s flagship LMU-4200 product has the features, expandability, and flexibility with the intelligence to meet all customer’s ever changing needs in fleet management. The LMU-4200 offers a full set of features, comprehensive I/O system and expandable accessories that make it an industry leading value proposition. The LMU-4200 expandability and flexibility lowers the cost of delivering, supporting, and growing fleet management solutions.

Location and tracking

• GPS Support
• Continupus tracking mode
• LBS Support

Mobile networks

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Power supply

• Build-in battery (200/1000 mAh Li-Ion)
• External power supply (9-30 V)

Inputs and outputs

• 7 Discrete inputs
• 4 Analog inputs
• 4 Digital outputs

Other features

• External CAN reader
• Remote management
• Accessories

CalAmp’s flagship LMU-4230 product has the features, expandability, and flexibility with the intelligence to meet all customer’s ever changing needs in fleet management. The LMU-4230 offers a full set of features, comprehensive I/O system and expandable accessories that make it an industry leading value proposition. The LMU-4230 expandability and flexibility lowers the cost of delivering, supporting, and growing fleet management solutions.

Location and tracking

• GPS Support
• Continupus tracking mode
• LBS Support

Mobile networks

• 800/850/900/1700/1900/2100 MHz
• 2G / 3G Network

Power supply

• Build-in battery (200/1000 mAh Li-Ion)
• External power supply (9-30 V)

Inputs and outputs

• 7 Discrete inputs
• 4 Analog inputs
• 4 Digital outputs

Other features

• External CAN reader
• Remote management
• Accessories

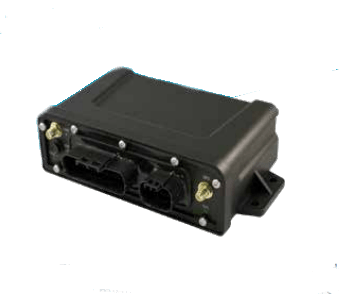

CalAmp’s LMU-4520™ is a fully weatherproof dual-mode location and messaging device for mining and construction markets that features both Iridium® satellite and cellular communications as well as connection to the vehicles ECU. The LMU-4520™ offers a full set of fleet management features, comprehensive I/O system and expandable accessories, along with an IP-67 environmental rating, that makes it an industry leading value proposition. The LMU-4520 ™ expandability and flexibility lowers the cost of delivering, supporting, and growing fleet management solutions.

Location and tracking

• GPS Support
• Continuous tracking mode
• LBS Support

Mobile networks

• 850/900/1800/1900 MHz
• 2G / 3G Network

Power supply

• Build-in battery (1000 mAh)
• External power supply (9-30 V)

Inputs and outputs

• 7 Discrete inputs
• 4 Analog inputs
• 4 Digital outputs

Other features

• Internal Iridium® satellite transceiver
• Remote management
• IP-67
• Accessories

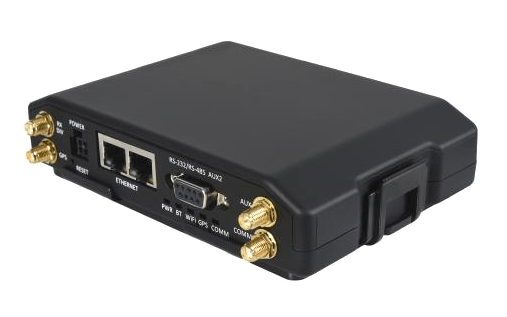

CalAmp LMU-5530 has the versatility, speed and expandability to meet customers’ ever challenging needs in fixed or mobile broadband applications. With a powerful, lower power, 800MHz ARM9 embedded processor, the LMU-5530 boasts an adaptable platform featuring: 3G/4G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3-axis g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

The LMU-5530 comes equipped with two Ethernet 10/100 ports, both host and device OTG USB, RS232/RS485 serial port, switched power TTL serial port, two 1-wire busses, seven inputs, seven outputs, and five A/D inputs. The LMU-5530 also supports advanced peripherals including laptops, USB dongles, Mobile Data Terminals (MDT’s), RFID tags, and more.

• GPS\GLONASS Support
• Continuous tracking mode
• LBS Support

• 700/800/850/900/1800/1900/2100/2600 MHz
• 3G / 4G Network

Operating Voltage:

• 9-30 VDC (Start-up, Operating)
• 8-32 VDC (Momentary)

Power Consumption:

• <2mA @ 12V (Deep Sleep)
• 160mA @ 12V (Idle on Network)
• 270mA @ 12V (Active Tracking)

1000 mAh Li-Ion backup battery

• 7 Discrete input
• 5 Analog input
• 7 Digital outputs
• 2 1-Wire Interfaces

• Remote management
• LED indication
• Accessories

LMU-700 is an economical but full-featured tracker. This device provides a cost-effective and reliable solution for vehicle tracking.

Location and tracking

• GPS
• Continuous tracking mode
• LBS

Mobile networks

• GSM/GPRS 850/900/1800/1900
• 2G

Power supply

• Build-in 200 mAh battery

Inputs and outputs

• 3 digital inputs
• 1 internal VCC monitor
• 3 digital outputs

Other features

• GPS, Cellular LED indication
• Operating temperature -30° to + 75° C

LMU-800 is a compact and economical vehicle tracker. Easy installation and various features make this device a perfect and cost-effective solution for vehicle tracking.

Location and tracking

• GPS
• Continuous tracking mode
• LBS

Mobile networks

• GSM/GPRS 850/900/1800/1900
• HSPA/UMTS 800/850/900/1700/1900/2100
• 2G

Power supply

• Build-in 200 mAh battery

Inputs and outputs

• 3 digital inputs
• 1 internal VCC monitor
• 3 digital outputs

Other features

• GPS, Cellular LED indication
• Operating temperature -30° to + 75° C

CalAmp LMU-900 is a reliable and easy to install vehicle tracker. It's a perfect solution for managing small fleets.

Location and tracking

• GPS
• Continuous tracking mode
• LBS

Mobile networks

• GSM/GPRS 850/900/1800/1900
• 2G

Power supply

• 20 pin Molex-type fused power harness

Inputs and outputs

• 4 digital inputs
• 1 external ADC / 1 internal VCC monitor
• 4 digital outputs

Other features

• GPS, Cellular LED indication
• Screw mounting bracket/Tie-wrap or adhesive
• Operating temperature -30° to + 75° C

CalAmp TTU-1200 a rechargeable trailer tracker designed for long deployments. Built-in battery allows this tracker to save data during disconnect from the main power supply.

Location and tracking

• GPS
• Continous tracking mode
• LBS

Mobile networks

• GSM 850/900/1800/1900
• HSPA/UMTS 800/850/900/1700/1900/2100
• 2G

Inputs and outputs

• 3 digital inputs (1 fixed, 2 programmable)
• 3 digital outputs

Power supply

• Built-in 5.2 mAh battery

Other features

• IP-66 protection
• Operating temperature -30 to +70° C

CalAmp TTU-2830 is a weatherproof vehicle tracker designed for long deployments. Built-in battery allows this tracker to save data during disconnect from the main power supply.

Location and tracking

• GPS
• Continous tracking mode
• LBS

Mobile networks

• GSM 850/900/1800/1900
• HSPA/UMTS 800/850/900/1700/1900/2100
• 2G

Inputs and outputs

• 3 digital inputs (1 fixed, 2 programmable)
• 1 analog input
• 3 digital outputs
• 1-Wire interface

Power supply

• Built-in 5.3 mAh battery

Other features

• IP-66 protection
• Operating temperature -20° to +70° C

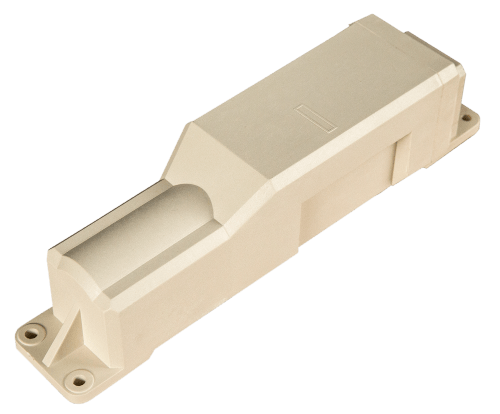

CalAmp TTU-700 is an extremely reliable battery-operated tracker designed for milti-year long deploymets.

Location and tracking

• GPS
• Continous tracking mode
• LBS

Mobile networks

• GSM 850/900/1800/1900
• HSPA/UMTS 800/850/900/1700/1900/2100
• 2G

Power supply

• Replaceable batteries

Other features

• IP-67 protection
• Operating temperature -30° to +75° C
